Energy storage connector

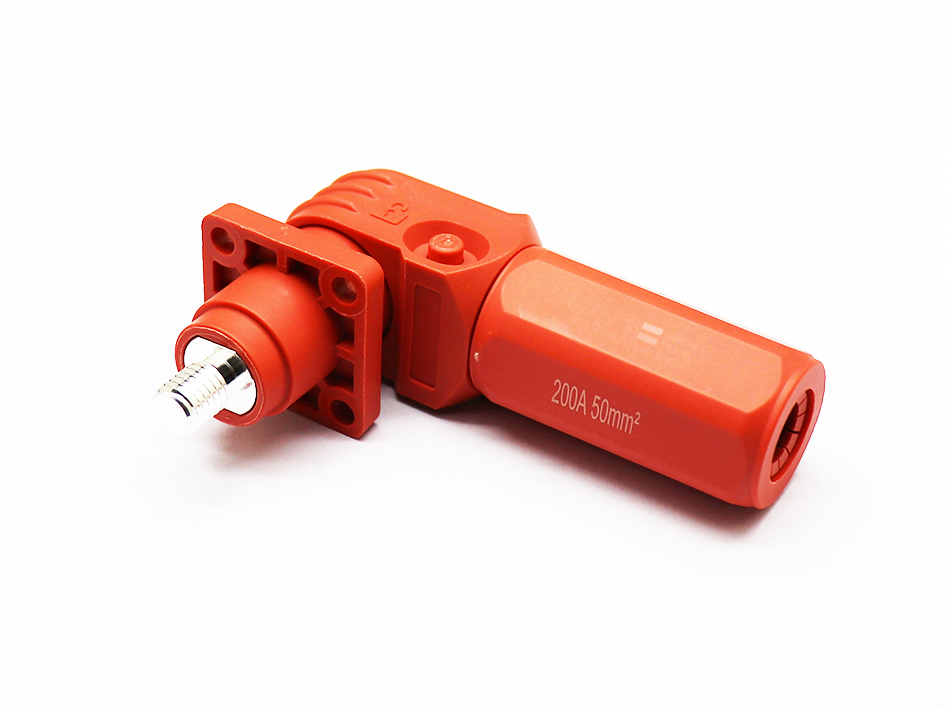

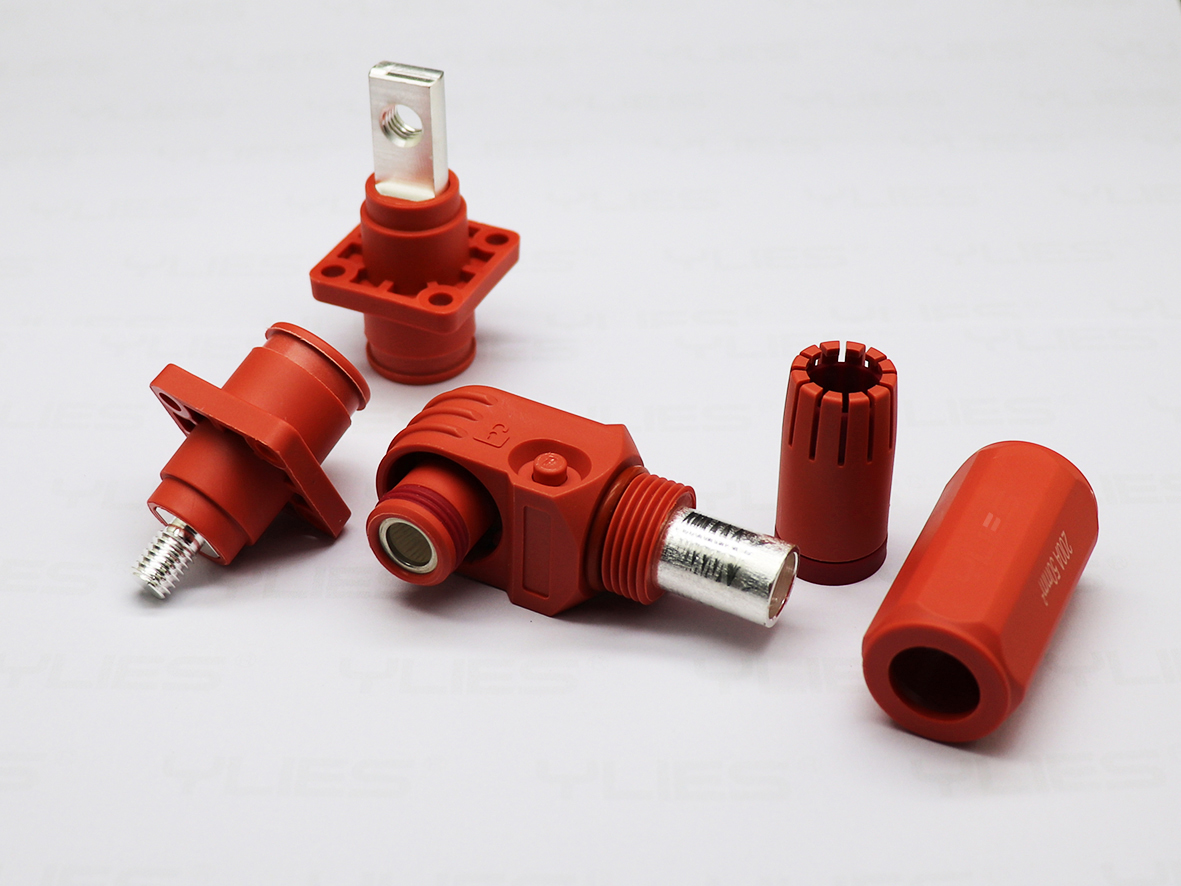

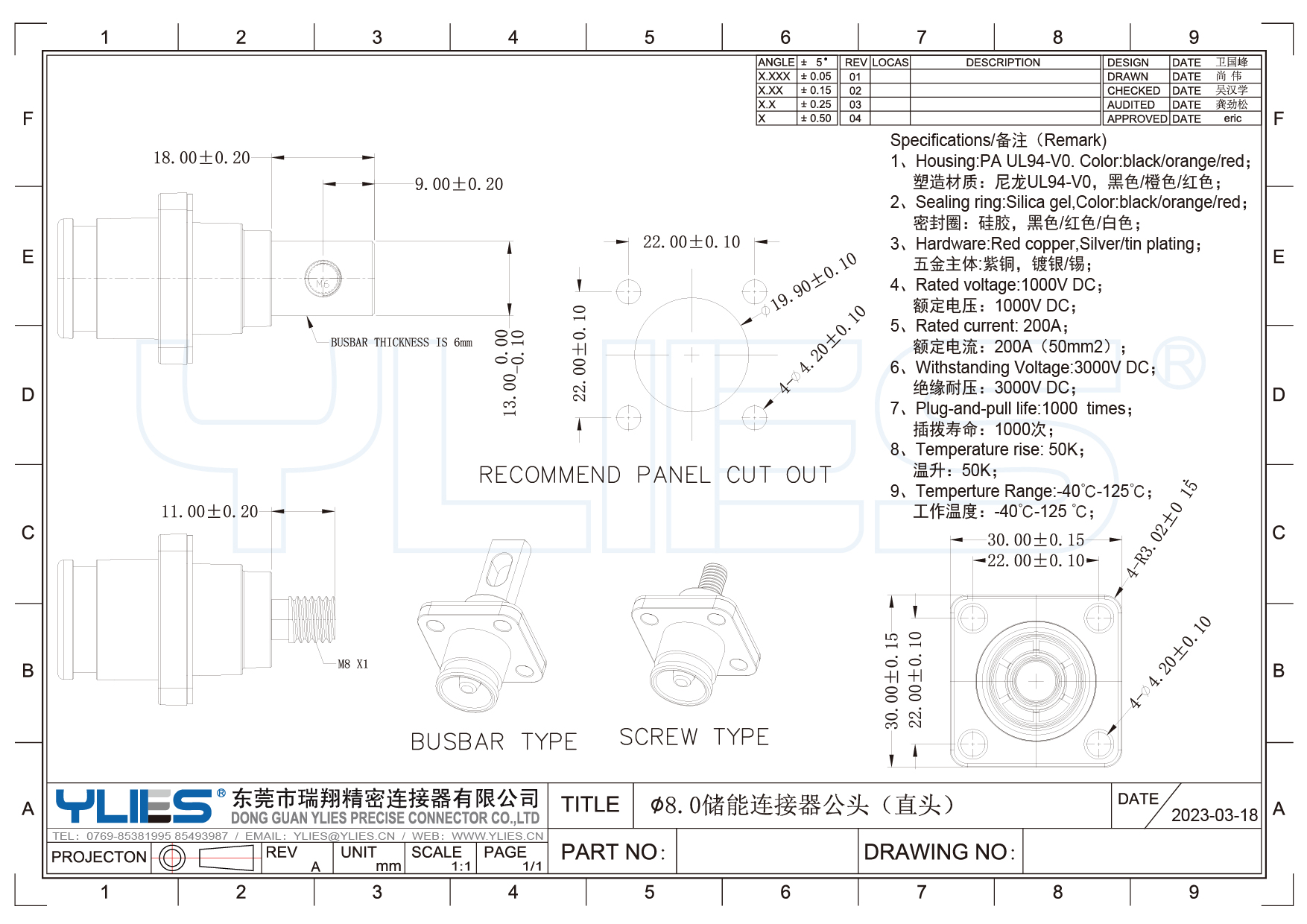

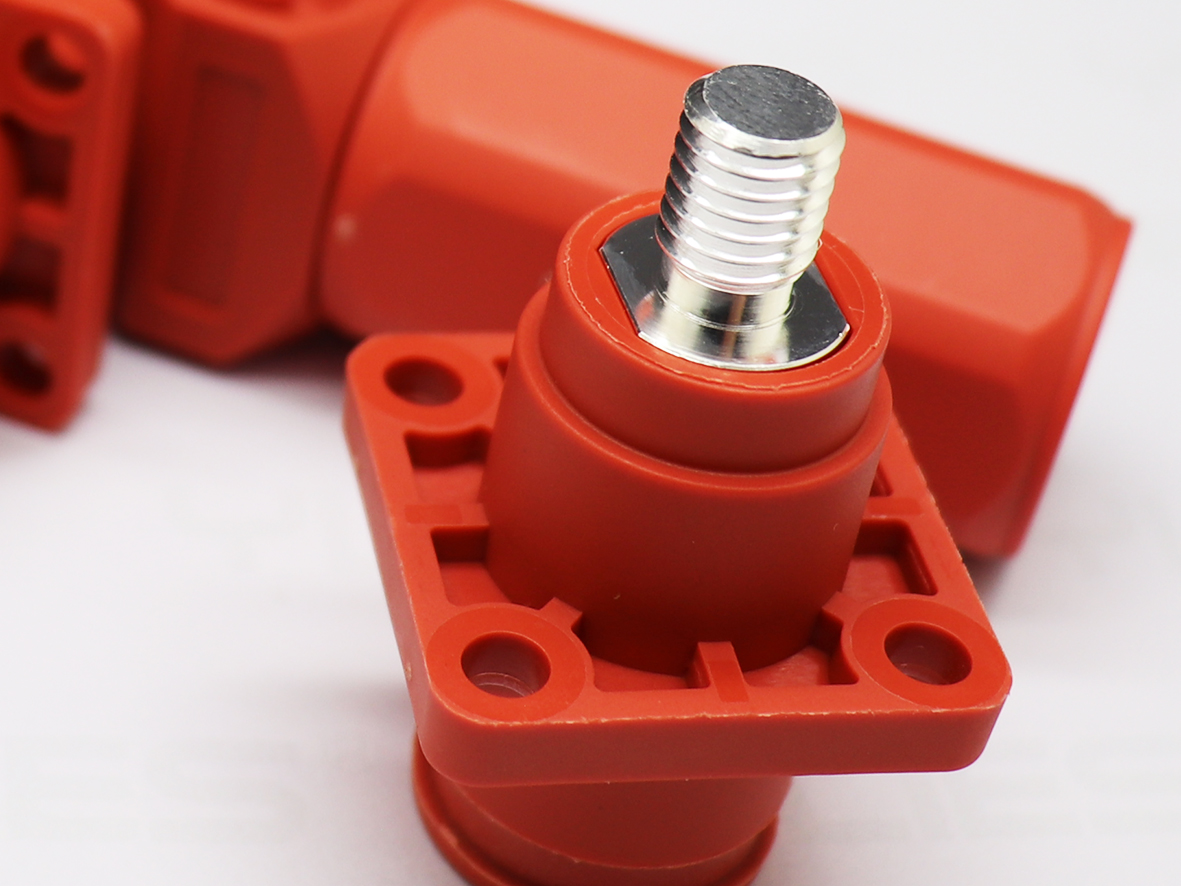

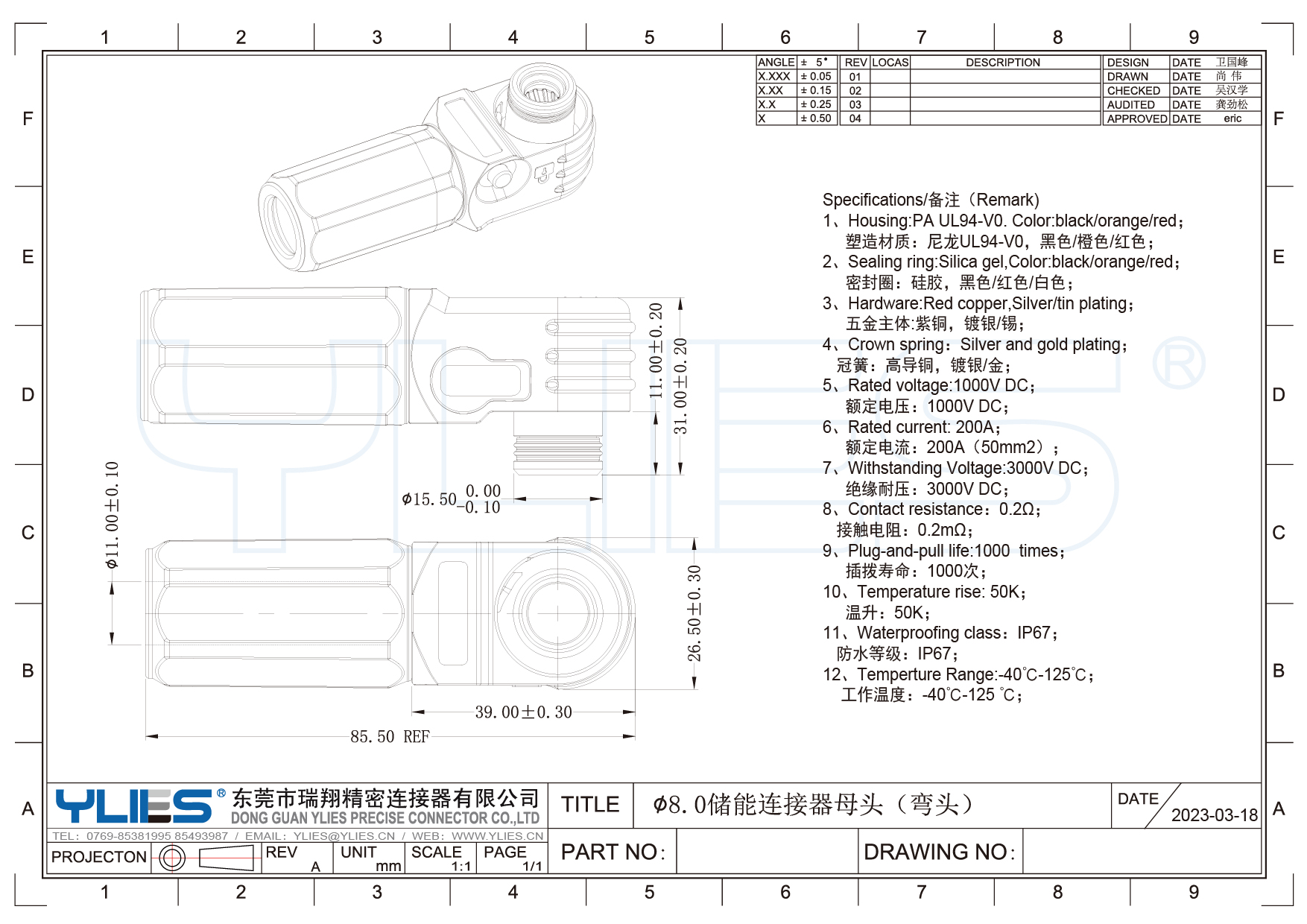

Diameter 8.0 energy storage connector male (straight) Female (elbow)

PDF Download
Detailed


1、Housing:PA UL94-V0. Color:black/orange/red;

     塑造材质:尼龙UL94-V0,黑色/橙色/红色;

2、Sealing ring:Silica gel,Color:black/orange/red;

     密封圈:硅胶,黑色/红色/白色;

3、Hardware:Red copper,Silver/tin plating;

     五金主体:紫铜,镀银/锡;

4、Crown spring:Silver and gold plating;

   冠簧:高导铜,镀银/金;

5、Rated voltage:1000V DC;

     额定电压:1000V DC;

6、Rated current: 80A/100A/120A/150A/200A(50mm2);

     额定电流:80A/100A/120A/150A/200A(50mm2);

7、Withstanding Voltage:3000V DC;

     绝缘耐压:3000V DC;

8、Contact resistance:0.2Ω;

   接触电阻:0.2mΩ;

9、Plug-and-pull life:1000  times;

     插拨寿命:1000次;

10、Temperature rise: 50K;

     温升:50K;

11、Waterproofing class:IP67;

   防水等级:IP67;

12、Temperture Range:-40℃-125℃;

    工作温度:-40℃-125 ℃;
